Shure wireless in-ear monitoring system

A friend lent me their Shure PSM300 P3T in-ear monitoring system today.  This is a top-of-the-line piece of kit for weekend-warrior type bands, costing over £600 for just one monitor mix.

http://www.shure.com/americas/products/personal-monitor-systems/psm-300-stereo-personal-monitor-system/p3t-half-rack-single-channel-wireless-transmitter

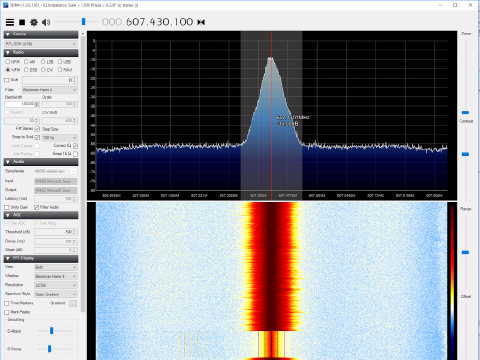

Turns out that the actual RF signal being transmitted is straightforward analog FM.
A £10 USB TV stick and the free SDR# software http://www.rtl-sdr.com/rtl-sdr-quick-start-guide/ can decode the signal and play it out of the sound card output in stereo.

Shure mentions that there is some “24 bit digital” processing – what they call “Patented Shure Audio Reference Companding”.  The decoded PC signal does sound a bit swooshy compared to the actual Shure receiver unit, so that would suggest it is doing a bit of companding.

Audio test CD

For repairing amplifiers.
Left and right channels have identical signals. The files were created using the excellent shareware Goldwave audio editor.

Track listing is as follows:

1) 1000Hz sine wave
2) 1000Hz square wave
3) 1000Hz triangle wave
4) 440Hz sine wave
5) 20Hz sine wave
6) 20KHz sine wave
Each track is only 1 minute long, so use “Repeat” on your CD player to obtain a (nearly) continuous tone.
Don’t play this CD through your speakers, unless the volume is at minimum.
The audio tracks are recorded at 50% dynamic range, to avoid any clipping in the CD player itself (of course it should not do that, but my portable CD player used for testing is not perfect, maybe yours isn’t either).
Download  a ZIP of the .ISO and .CUE file ready for burning with your favourite CD writing software.

XMOS StartKit – write performance of Sandisk memory card

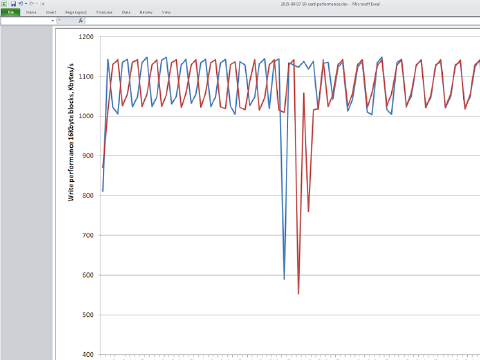

Here’s a graph showing the write performance to a Sandisk Class 10 memory card.
The reason for the sharp dips in performance, are that the FAT filing system has to go off and allocate a new cluster every N writes.  For example 512 byte sectors, 32Kbyte clusters, means a new cluster is needed every 64 writes.
Another factor on the XMOS board is whether the code is running in ‘debug’ or ‘release’ mode. This can make around 2x difference.
I also found that the code published on https://github.com/xcore/sc_sdcard seems to not pay attention to setup and hold times, and appears to be leaving the clock line in a logic “1” state when in fact data gets clocked on a logic 0 -> 1 transition.
All this led me to branch the repo and produce my own version, here: https://github.com/tuck1s/sc_sdcard
The changes are too numerous to list here (see the github changelog) but with pre-allocation of a file with contiguous sectors, and a Sandisk Extreme Pro SDcard, there’s enough performance to write around 3Mbytes/s to the card.
My experiments with the even smaller “PetitFAT” filing system were halted because it only reads/writes a sector at a time and that would not give enough performance.
Measuring ‘where the time goes’, I can see that the time taken to clock in a sector’s worth is usually only a few hundred microseconds, whereas the card can then take several milliseconds to respond that it’s done. This is highly variable and also highly dependent on the grade of the SD card.

XMOS StartKit – reading and writing to SD card

Being able to read/write information from an SD card is probably the easiest way to get large amounts of non-volatile storage into an embedded project.
I’m using XMOS StartKit,, with the code from here

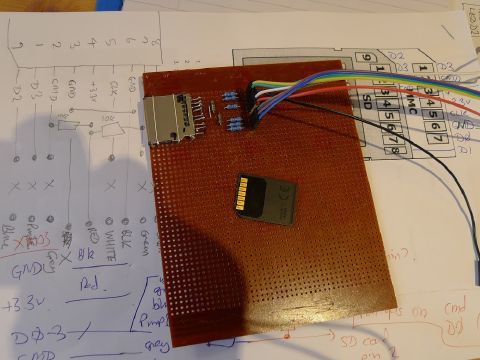

The card reader is a part from Wurth Elektronik, Farnell / CPC part number CN18143 available here.

The data and clock lines have 120 ohm series resistors, as this can help to absorb transmission-line reflections on the connecting wires (even though they are fairly short).
In addition, pins 2 and 7 have 10K ohm pull up resistors.
Pins on an SD card are numbered from 9 (the chamfered end), then 1 to 8.  This is because very early cards, like the one shown above, have no pin 9.
SD cards run from 3.3v, so this can be provided directly from the StartKit board.
The XMOS code supports both 1-bit (SPI mode) and 4-bit data access mode.  Initially the code is set to use 1-bit SPI mode.
As well as GND and 3.3V, SPI mode only requires pins:
1  CS
2  MOSI
5  SCLK
7  MISO
These are connected up and monitored on the scope.
The signal quality looks OK.
The very old 16Mbyte card that I started with, would not read/write (it gave reason code=3).
A newer 16GB card read/wrote OK, as follows:
15026112 KB total drive space.
15748096 KB available.

Deleting file Data.bin if existing...done.

Creating a new file Data.bin...done.

Writing data to the file...20480 bytes written. Write rate: 215KBytes/Sec

Closing the file...done.

Opening an existing file: Data.bin...done.

Reading file content...20480 bytes read. Read rate: 275KBytes/Sec

Closing the file...done.

Open root directory.

Directory listing...
<dir> DCIM
<dir> MISC
<dir> PRIVATE
4096 ~1.TRA
20480 DATA.BIN
<dir> TRASHE~1
<dir> SYSTEM~1

Test completed.
The file SDCardHostSPI.xc contains the XMOS port mappings for these lines, as follows.  I’ve used these unchanged in this test.
static SDHostInterface SDif[] = // LIST HERE THE PORTS USED FOR THE INTERFACES
// cs, sclk, Mosi, miso
{XS1_CLKBLK_1, XS1_CLKBLK_2, XS1_PORT_1O, XS1_PORT_1M, XS1_PORT_1N, XS1_PORT_1P, 0, 0}; // resources used for interface #0
The ports map onto StartKit pins as follows:
SD card 1 CS = XMOS J7 pin 21 = Port 1O
SD card 2 MOSI = XMOS J7 pin 17 = Port 1N
SD card 5 SCLK = XMOS J7 pin 15 = Port 1M
SD card 7 MISO = XMOS J7 pin 23 = Port 1P

Rigol DS1054Z digital storage scope – decoding I2S signals

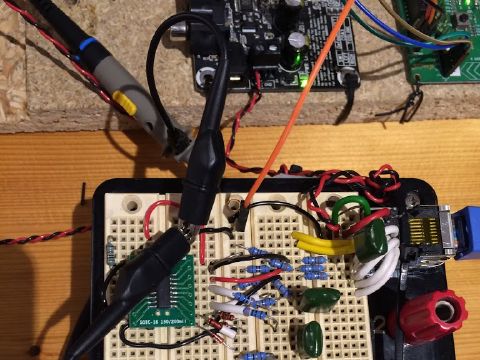

I recently got one of these great little digital scopes.  It has a few serial bus decoding packages (on a try-before-buy basis).  You get 36 hours to play with them.  Unfortunately they don’t include I2S bus decoding.  I2S is a bus standard commonly used for transferring digital audio around, for example between ADCs and DACs.

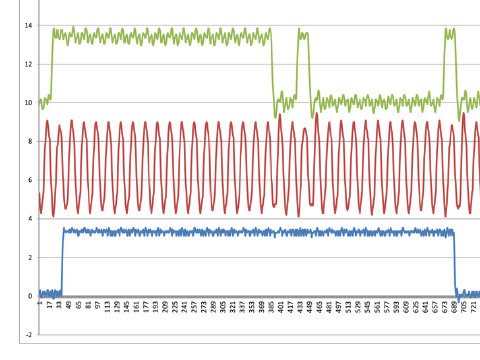

No matter! You can capture and export full-resolution traces of signals via a USB memory stick. This seems to work best if the stick is FAT formatted rather than FAT32.  The file format is .CSV which is great for importing into Excel and viewing.  You can then use Excel’s charting function to provide a decode of your signals with much greater time-resolution than you can see on the scope’s display itself (which is still pretty good).  For example

You can also parse the .CSV file and decode signals quite easily using scripting languages such as PHP, giving outputs in binary, hex or whatever you like – e.g.

Using logic threshold of 1.900000 volts
00000000 00001000 00000000 001 Bits:27 Hex: 00004001 #0:64
540 LRCLK edge 1: 00000000 00000000 00110000 00000001 Bits:32 Hex: 00003001 #1:48
1191 LRCLK edge 2: 00000000 00000000 00010000 00000001 Bits:32 Hex: 00001001 #2:16
1842 LRCLK edge 3: 00000000 00000000 01010000 00000001 Bits:32 Hex: 00005001 #3:80
2494 LRCLK edge 4: 11111010 10000011 11110000 00000001 Bits:32 Hex: fa83f001 #4:-359440
3145 LRCLK edge 5: 00000000 00000000 00100000 00000001 Bits:32 Hex: 00002001 #5:32
3796 LRCLK edge 6: 00000000 00000000 00010000 00000001 Bits:32 Hex: 00001001 #6:16
4447 LRCLK edge 7: 00000000 00000000 00010000 00000001 Bits:32 Hex: 00001001 #7:16
5098 LRCLK edge 8: 11111111 11111111 10100000 00000001 Bits:32 Hex: ffffa001 #0:-96
5749 LRCLK edge 9: 00000000 00000000 00010000 00000001 Bits:32 Hex: 00001001 #1:16
6400 LRCLK edge 10: 11111111 11111111 11000000 00000001 Bits:32 Hex: ffffc001 #2:-64

Here’s the code – updated to read the signals on the correct edge

<?php

// Decode I2S data captured in CSV file from Rigol DS1054Z scope
// Assumptions: First two rows in the file are header lines - skip these.
//
// Channels are arranged as : CH1 = BCLK, CH2 = LRCLK, CH3 = DOUT, CH4 = scopetrig

// Command line parameters: <inputfile> <voltage threshold>
// threshold of 1.8 or 1.9 volts seems to be reliable with 3.3v logic.
//
// Fixed to toggle in data on rising edges of BCLK

if($argv[1] == "") {
exit("Usage: ".$argv[0]." input_file [voltage_threshold]n");
}

// Get parameters
$fp = fopen($argv[1], "r");

if($argv[2] == "") {
$threshold = 1.8;
}
else {
$threshold = (float)$argv[2]; //Volts
}


if(is_numeric($threshold)) {
print("Using logic threshold of ".sprintf("%f", $threshold)." voltsn");
}
else {
exit("voltage threshold must be a numeric value");
}

// Skip the two expected header lines
$ln = fgetcsv($fp);
$ln = fgetcsv($fp);

$i=1;

// Get the first line of real data in
$ln = fgetcsv($fp);
$bclk = $ln[0];
$lrclk = $ln[1];
$dout = $ln[2];

// Set up initial trigger conditions
$bclkTrig = $bclk;
$lrclkTrig = $lrclk;

//Count edges as they happen
$bclkEdgeCount = 0;
$lrclkEdgeCount = 0;
$doneLSB = false;

// Collect bits into this shift register
$bitcount = 0;
$doutShiftReg = 0;

while(!feof($fp)) {
$i=$i+1;
$ln = fgetcsv($fp);

$bclk = $ln[0];
$lrclk = $ln[1];
$dout = $ln[2];

// Check for a RISING edge in BCLK
if(($bclkTrig <$threshold) && ($bclk >= $threshold) ) {
$bclkEdgeCount++;

// Check if the LRCLK line has changed state since the last edge
if( ($lrclkTrig >$threshold) <> ($lrclk >$threshold)) {
// Dump out hex value accumulated so far, the count of bits in this sample, and decimal equivalent
$hexnum = sprintf("%08x", $doutShiftReg);

// Handle 2-s complement sign conversion for the 24-bit audio
$signedSample = $doutShiftReg >> 8;
if($signedSample >= 2**23 -1) {
$signedSample = $signedSample - (2**24);
}

echo " Bits:".$bitcount." Hex: ".$hexnum." #".($lrclkEdgeCount %8).":".$signedSample;
$lrclkEdgeCount++;
echo "n".sprintf("%8d",$i)." LRCLK edge ".sprintf("%4d",$lrclkEdgeCount).": ";
$lrclkTrig = $lrclk;

// Start accumulating bits into the shift register
$bitcount = 0;
$doutShiftReg = 0;
}


// output raw data, and accumulate it into shift register
if($dout > $threshold) $doutBit = 1; else $doutBit = 0;
echo $doutBit;
$bitcount++;
if($bitcount %8 == 0) echo " "; // pretty-print spacing

$doutShiftReg = ($doutShiftReg <<1) + $doutBit;
}
// this is the new value we'll compare against
$bclkTrig = $bclk;

}
echo "n";
?>

Using the program, it’s possible to capture I2S signals and decode them as follows. This is data from a Behringer P16I device, through a Wolfson WM8804 evaulation board:


Using logic threshold of 1.900000 volts
0000001 Bits:7 Hex: 00000001 #0:0
132 LRCLK edge 1: 11111111 11111111 11000000 00000001 Bits:32 Hex: ffffc001 #1:-64
783 LRCLK edge 2: 11111111 11111111 10100000 00000001 Bits:32 Hex: ffffa001 #2:-96
1434 LRCLK edge 3: 11111111 11111111 01100000 00000001 Bits:32 Hex: ffff6001 #3:-160
2086 LRCLK edge 4: 11111111 11111111 01110000 00000001 Bits:32 Hex: ffff7001 #4:-144
2737 LRCLK edge 5: 00000000 00000000 00100000 00000001 Bits:32 Hex: 00002001 #5:32
3388 LRCLK edge 6: 11111111 11111111 11010000 00000001 Bits:32 Hex: ffffd001 #6:-48
4039 LRCLK edge 7: 11111111 11111111 10010000 00000001 Bits:32 Hex: ffff9001 #7:-112
4690 LRCLK edge 8: 00000000 00000000 01100000 00000001 Bits:32 Hex: 00006001 #0:96
5341 LRCLK edge 9: 11111111 11111110 11110000 00000001 Bits:32 Hex: fffef001 #1:-272
5992 LRCLK edge 10: 11111111 11111111 10110000 00000001 Bits:32 Hex: ffffb001 #2:-80
6643 LRCLK edge 11: 00000000 00000000 01110000 00000001 Bits:32 Hex: 00007001 #3:112
7294 LRCLK edge 12: 00000000 00000000 11010000 00000001 Bits:32 Hex: 0000d001 #4:208
7945 LRCLK edge 13: 00000000 00000000 01100000 00000001 Bits:32 Hex: 00006001 #5:96
8596 LRCLK edge 14: 00000000 00000000 00010000 00000001 Bits:32 Hex: 00001001 #6:16
9247 LRCLK edge 15: 00000000 00000000 10010000 00000001 Bits:32 Hex: 00009001 #7:144
9898 LRCLK edge 16: 11111111 11111111 01010000 00000001 Bits:32 Hex: ffff5001 #0:-176
10549 LRCLK edge 17: 11111111 11111111 10110000 00000001 Bits:32 Hex: ffffb001 #1:-80
11200 LRCLK edge 18: 00000000 00000000 01000000 00000001 Bits:32 Hex: 00004001 #2:64
11851 LRCLK edge 19: 00000000 00000000 01100000 00000001 Bits:32 Hex: 00006001 #3:96
12502 LRCLK edge 20: 11111111 11111111 10110000 00000001 Bits:32 Hex: ffffb001 #4:-80
13153 LRCLK edge 21: 00000000 00000000 10100000 00000001 Bits:32 Hex: 0000a001 #5:160
13804 LRCLK edge 22: 00000000 00000000 00010000 00000001 Bits:32 Hex: 00001001 #6:16
14455 LRCLK edge 23: 11111111 11111111 10000000 00000001 Bits:32 Hex: ffff8001 #7:-128
15106 LRCLK edge 24: 00000000 00000000 10000000 00000001 Bits:32 Hex: 00008001 #0:128
15758 LRCLK edge 25: 11111111 11111111 10010000 00000001 Bits:32 Hex: ffff9001 #1:-112
16409 LRCLK edge 26: 11111111 11111111 10100000 00000001 Bits:32 Hex: ffffa001 #2:-96
17060 LRCLK edge 27: 00000000 00000000 00000000 00000001 Bits:32 Hex: 00000001 #3:0
17711 LRCLK edge 28: 00000000 00000000 00000000 00000001 Bits:32 Hex: 00000001 #4:0
18362 LRCLK edge 29: 00000000 00000000 11100000 00000001 Bits:32 Hex: 0000e001 #5:224
19013 LRCLK edge 30: 00000000 00000000 10000000 00000001 Bits:32 Hex: 00008001 #6:128
19664 LRCLK edge 31: 00000000 00000000 01010000 00000001 Bits:32 Hex: 00005001 #7:80
20315 LRCLK edge 32: 00000000 00000000 10100000 00000001 Bits:32 Hex: 0000a001 #0:160
20966 LRCLK edge 33: 11111111 11111111 11000000 00000001 Bits:32 Hex: ffffc001 #1:-64
21617 LRCLK edge 34: 11111111 11111110 11110000 00000001 Bits:32 Hex: fffef001 #2:-272
22268 LRCLK edge 35: 11111111 11111111 10100000 00000001 Bits:32 Hex: ffffa001 #3:-96
22919 LRCLK edge 36: 00000000 00000000 00110000 00000001 Bits:32 Hex: 00003001 #4:48
23570 LRCLK edge 37: 00000000 00000000 01000000 00000001 Bits:32 Hex: 00004001 #5:64
24221 LRCLK edge 38: 11111111 11111111 11100000 00000001 Bits:32 Hex: ffffe001 #6:-32
24872 LRCLK edge 39: 11111111 11111111 11100000 00000001 Bits:32 Hex: ffffe001 #7:-32
25523 LRCLK edge 40: 11111111 11111111 11110000 00000001 Bits:32 Hex: fffff001 #0:-16
26174 LRCLK edge 41: 00000000 00000000 10010000 00000001 Bits:32 Hex: 00009001 #1:144
26825 LRCLK edge 42: 00000000 00000000 01010000 00000001 Bits:32 Hex: 00005001 #2:80
27476 LRCLK edge 43: 11111111 11111111 10000000 00000001 Bits:32 Hex: ffff8001 #3:-128
28127 LRCLK edge 44: 11111111 11111111 01110000 00000001 Bits:32 Hex: ffff7001 #4:-144
28778 LRCLK edge 45: 00000000 00000001 00000000 00000001 Bits:32 Hex: 00010001 #5:256
29429 LRCLK edge 46: 11111111 11111111 11110000 00000001 Bits:32 Hex: fffff001 #6:-16
30080 LRCLK edge 47: 00000000 00000000 01000000 00000001 Bits:32 Hex: 00004001 #7:64
30732 LRCLK edge 48: 11111111 11111111 00110000 00000001 Bits:32 Hex: ffff3001 #0:-208
31383 LRCLK edge 49: 00000000 00000000 00010000 00000001 Bits:32 Hex: 00001001 #1:16
32034 LRCLK edge 50: 00000000 00000000 01000000 00000001 Bits:32 Hex: 00004001 #2:64
32685 LRCLK edge 51: 00000000 00000000 01110000 00000001 Bits:32 Hex: 00007001 #3:112
33336 LRCLK edge 52: 11111111 11111111 10010000 00000001 Bits:32 Hex: ffff9001 #4:-112
33987 LRCLK edge 53: 11111111 11111111 00100000 00000001 Bits:32 Hex: ffff2001 #5:-224
34638 LRCLK edge 54: 11111111 11111111 01100000 00000001 Bits:32 Hex: ffff6001 #6:-160
35289 LRCLK edge 55: 11111111 11111111 01100000 00000001 Bits:32 Hex: ffff6001 #7:-160
35940 LRCLK edge 56: 00000000 00000000 00100000 00000001 Bits:32 Hex: 00002001 #0:32
36591 LRCLK edge 57: 00000000 00000000 01000000 00000001 Bits:32 Hex: 00004001 #1:64
37242 LRCLK edge 58: 00000000 00000000 00000000 00000001 Bits:32 Hex: 00000001 #2:0
37893 LRCLK edge 59: 00000000 00000000 01010000 00000001 Bits:32 Hex: 00005001 #3:80
38544 LRCLK edge 60: 00000000 00000001 00010000 00000001 Bits:32 Hex: 00011001 #4:272
39195 LRCLK edge 61: 11111111 11111111 11100000 00000001 Bits:32 Hex: ffffe001 #5:-32
39846 LRCLK edge 62: 11111111 11111111 11100000 00000001 Bits:32 Hex: ffffe001 #6:-32
40497 LRCLK edge 63: 00000000 00000000 01110000 00000001 Bits:32 Hex: 00007001 #7:112
41148 LRCLK edge 64: 11111111 11111111 11110000 00000001 Bits:32 Hex: fffff001 #0:-16
41799 LRCLK edge 65: 00000000 00000000 00000000 00000001 Bits:32 Hex: 00000001 #1:0
42450 LRCLK edge 66: 11111111 11111111 10000000 00000001 Bits:32 Hex: ffff8001 #2:-128
43101 LRCLK edge 67: 11111111 11111110 11100000 00000001 Bits:32 Hex: fffee001 #3:-288
43753 LRCLK edge 68: 11111111 11111111 10010000 00000001 Bits:32 Hex: ffff9001 #4:-112
44403 LRCLK edge 69: 00000000 00000000 10000000 00000001 Bits:32 Hex: 00008001 #5:128
45054 LRCLK edge 70: 00000000 00000000 10000000 00000001 Bits:32 Hex: 00008001 #6:128
45706 LRCLK edge 71: 00000000 00000000 10100000 00000001 Bits:32 Hex: 0000a001 #7:160
46357 LRCLK edge 72: 11111111 11111111 01100000 00000001 Bits:32 Hex: ffff6001 #0:-160
47008 LRCLK edge 73: 11111111 11111111 10000000 00000001 Bits:32 Hex: ffff8001 #1:-128
47659 LRCLK edge 74: 11111111 11111111 11010000 00000001 Bits:32 Hex: ffffd001 #2:-48
48310 LRCLK edge 75: 11111111 11111111 01010000 00000001 Bits:32 Hex: ffff5001 #3:-176
48961 LRCLK edge 76: 00000000 00000000 01000000 00000001 Bits:32 Hex: 00004001 #4:64
49612 LRCLK edge 77: 00000000 00000000 01110000 00000001 Bits:32 Hex: 00007001 #5:112
50263 LRCLK edge 78: 11111111 11111111 01110000 00000001 Bits:32 Hex: ffff7001 #6:-144
50914 LRCLK edge 79: 00000000 00000000 11110000 00000001 Bits:32 Hex: 0000f001 #7:240
51565 LRCLK edge 80: 00000000 00000000 01100000 00000001 Bits:32 Hex: 00006001 #0:96
52216 LRCLK edge 81: 11111111 11111110 11110000 00000001 Bits:32 Hex: fffef001 #1:-272
52867 LRCLK edge 82: 11111111 11111111 10000000 00000001 Bits:32 Hex: ffff8001 #2:-128
53518 LRCLK edge 83: 00000000 00000000 00010000 00000001 Bits:32 Hex: 00001001 #3:16
54169 LRCLK edge 84: 00000000 00000000 10010000 00000001 Bits:32 Hex: 00009001 #4:144
54820 LRCLK edge 85: 00000000 00000000 10110000 00000001 Bits:32 Hex: 0000b001 #5:176
55471 LRCLK edge 86: 00000000 00000000 10010000 00000001 Bits:32 Hex: 00009001 #6:144
56122 LRCLK edge 87: 11111111 11111111 10100000 00000001 Bits:32 Hex: ffffa001 #7:-96
56773 LRCLK edge 88: 00000000 00000000 00100000 00000001 Bits:32 Hex: 00002001 #0:32
57424 LRCLK edge 89: 11111111 11111111 11110000 00000001 Bits:32 Hex: fffff001 #1:-16
58075 LRCLK edge 90: 00000000 00000000 10000000 00000001 Bits:32 Hex: 00008001 #2:128
58727 LRCLK edge 91: 00000000 00000000 01110000 00000001 Bits:32 Hex: 00007001 #3:112
59378 LRCLK edge 92: 00000000 00000000 10110000 00000001 Bits:32 Hex: 0000b001 #4:176
60029 LRCLK edge 93: 00000000 00000000 00110000 00000001 Bits:32 Hex: 00003001 #5:48
60680 LRCLK edge 94: 00000000 00000000 10110000 00000001 Bits:32 Hex: 0000b001 #6:176
61331 LRCLK edge 95: 11111111 11111111 01010000 00000001 Bits:32 Hex: ffff5001 #7:-176
61982 LRCLK edge 96: 11111111 11111111 11100000 00000001 Bits:32 Hex: ffffe001 #0:-32
62633 LRCLK edge 97: 11111111 11111111 10100000 00000001 Bits:32 Hex: ffffa001 #1:-96
63284 LRCLK edge 98: 11111111 11111111 11010000 00000001 Bits:32 Hex: ffffd001 #2:-48
63935 LRCLK edge 99: 11111111 11111111 11110000 00000001 Bits:32 Hex: fffff001 #3:-16
64586 LRCLK edge 100: 11111111 11111111 10100000 00000001 Bits:32 Hex: ffffa001 #4:-96
65237 LRCLK edge 101: 00000000 00000000 01100000 00000001 Bits:32 Hex: 00006001 #5:96
65888 LRCLK edge 102: 11111111 11111111 11100000 00000001 Bits:32 Hex: ffffe001 #6:-32
66539 LRCLK edge 103: 11111111 11111111 11110000 00000001 Bits:32 Hex: fffff001 #7:-16
67190 LRCLK edge 104: 11111111 11111111 10010000 00000001 Bits:32 Hex: ffff9001 #0:-112
67841 LRCLK edge 105: 11111111 11111111 11110000 00000001 Bits:32 Hex: fffff001 #1:-16
68492 LRCLK edge 106: 11111111 11111111 01110000 00000001 Bits:32 Hex: ffff7001 #2:-144
69143 LRCLK edge 107: 00000000 00000000 10010000 00000001 Bits:32 Hex: 00009001 #3:144
69794 LRCLK edge 108: 11111111 11111111 11100000 00000001 Bits:32 Hex: ffffe001 #4:-32
70445 LRCLK edge 109: 11111111 11111111 10010000 00000001 Bits:32 Hex: ffff9001 #5:-112
71096 LRCLK edge 110: 00000000 00000000 00000000 00000001 Bits:32 Hex: 00000001 #6:0
71747 LRCLK edge 111: 00000000 00000000 10110000 00000001 Bits:32 Hex: 0000b001 #7:176
72399 LRCLK edge 112: 00000000 00000000 11010000 00000001 Bits:32 Hex: 0000d001 #0:208
73050 LRCLK edge 113: 11111111 11111111 11110000 00000001 Bits:32 Hex: fffff001 #1:-16
73701 LRCLK edge 114: 11111111 11111111 01110000 00000001 Bits:32 Hex: ffff7001 #2:-144
74352 LRCLK edge 115: 11111111 11111111 01100000 00000001 Bits:32 Hex: ffff6001 #3:-160
75003 LRCLK edge 116: 11111111 11111111 11110000 00000001 Bits:32 Hex: fffff001 #4:-16
75654 LRCLK edge 117: 11111111 11111111 10110000 00000001 Bits:32 Hex: ffffb001 #5:-80
76305 LRCLK edge 118: 11111111 11111111 10110000 00000001 Bits:32 Hex: ffffb001 #6:-80
76956 LRCLK edge 119: 11111111 11111111 10110000 00000001 Bits:32 Hex: ffffb001 #7:-80
77607 LRCLK edge 120: 11111111 11111111 11010000 00000001 Bits:32 Hex: ffffd001 #0:-48
78258 LRCLK edge 121: 11111111 11111111 11010000 00000001 Bits:32 Hex: ffffd001 #1:-48
78909 LRCLK edge 122: 11111111 11111111 11010000 00000001 Bits:32 Hex: ffffd001 #2:-48
79560 LRCLK edge 123: 11111111 11111111 01110000 00000001 Bits:32 Hex: ffff7001 #3:-144
80211 LRCLK edge 124: 11111111 11111111 01110000 00000001 Bits:32 Hex: ffff7001 #4:-144
80862 LRCLK edge 125: 11111111 11111111 11100000 00000001 Bits:32 Hex: ffffe001 #5:-32
81513 LRCLK edge 126: 11111111 11111111 11010000 00000001 Bits:32 Hex: ffffd001 #6:-48
82164 LRCLK edge 127: 11111111 11111111 10100000 00000001 Bits:32 Hex: ffffa001 #7:-96
82815 LRCLK edge 128: 00000000 00000000 01100000 00000001 Bits:32 Hex: 00006001 #0:96
83466 LRCLK edge 129: 00000000 00000000 00100000 00000001 Bits:32 Hex: 00002001 #1:32
84117 LRCLK edge 130: 00000000 00000000 10000000 00000001 Bits:32 Hex: 00008001 #2:128
84768 LRCLK edge 131: 00000000 00000000 11110000 00000001 Bits:32 Hex: 0000f001 #3:240
85420 LRCLK edge 132: 00000000 00000000 01010000 00000001 Bits:32 Hex: 00005001 #4:80
86071 LRCLK edge 133: 00000000 00000000 00110000 00000001 Bits:32 Hex: 00003001 #5:48
86722 LRCLK edge 134: 11111111 11111111 11000000 00000001 Bits:32 Hex: ffffc001 #6:-64
87373 LRCLK edge 135: 11111111 11111111 10010000 00000001 Bits:32 Hex: ffff9001 #7:-112
88024 LRCLK edge 136: 11111111 11111111 11110000 00000001 Bits:32 Hex: fffff001 #0:-16
88675 LRCLK edge 137: 11111111 11111111 10100000 00000001 Bits:32 Hex: ffffa001 #1:-96
89326 LRCLK edge 138: 00000000 00000001 00000000 00000001 Bits:32 Hex: 00010001 #2:256
89977 LRCLK edge 139: 11111111 11111111 10010000 00000001 Bits:32 Hex: ffff9001 #3:-112
90628 LRCLK edge 140: 00000000 00000000 10000000 00000001 Bits:32 Hex: 00008001 #4:128
91279 LRCLK edge 141: 00000000 00000000 00010000 00000001 Bits:32 Hex: 00001001 #5:16
91930 LRCLK edge 142: 00000000 00000000 11000000 00000001 Bits:32 Hex: 0000c001 #6:192
92581 LRCLK edge 143: 00000000 00000000 00010000 00000001 Bits:32 Hex: 00001001 #7:16
93232 LRCLK edge 144: 11111111 11111111 01000000 00000001 Bits:32 Hex: ffff4001 #0:-192
93883 LRCLK edge 145: 00000000 00000000 11000000 00000001 Bits:32 Hex: 0000c001 #1:192
94534 LRCLK edge 146: 00000000 00000000 00100000 00000001 Bits:32 Hex: 00002001 #2:32
95185 LRCLK edge 147: 00000000 00000000 01000000 00000001 Bits:32 Hex: 00004001 #3:64
95836 LRCLK edge 148: 11111111 11111111 10100000 00000001 Bits:32 Hex: ffffa001 #4:-96
96487 LRCLK edge 149: 11111111 11111111 10110000 00000001 Bits:32 Hex: ffffb001 #5:-80
97138 LRCLK edge 150: 00000000 00000000 01110000 00000001 Bits:32 Hex: 00007001 #6:112
97789 LRCLK edge 151: 11111111 11111111 10110000 00000001 Bits:32 Hex: ffffb001 #7:-80
98440 LRCLK edge 152: 00000000 00000000 00110000 00001001 Bits:32 Hex: 00003009 #0:48
99091 LRCLK edge 153: 11111111 11111111 10100000 00001001 Bits:32 Hex: ffffa009 #1:-96
99742 LRCLK edge 154: 11111111 11111111 11010000 00000001 Bits:32 Hex: ffffd001 #2:-48
100394 LRCLK edge 155: 00000000 00000000 10100000 00000001 Bits:32 Hex: 0000a001 #3:160
101045 LRCLK edge 156: 00000000 00000000 00110000 00000001 Bits:32 Hex: 00003001 #4:48
101696 LRCLK edge 157: 00000000 00000000 10110000 00000001 Bits:32 Hex: 0000b001 #5:176
102347 LRCLK edge 158: 00000000 00000000 11100000 00000001 Bits:32 Hex: 0000e001 #6:224
102998 LRCLK edge 159: 00000000 00000000 11010000 00000001 Bits:32 Hex: 0000d001 #7:208
103649 LRCLK edge 160: 00000000 00000000 10100000 00000001 Bits:32 Hex: 0000a001 #0:160
104300 LRCLK edge 161: 00000000 00000000 01110000 00000001 Bits:32 Hex: 00007001 #1:112
104951 LRCLK edge 162: 11111111 11111111 10010000 00000001 Bits:32 Hex: ffff9001 #2:-112
105602 LRCLK edge 163: 11111111 11111110 11000000 00000001 Bits:32 Hex: fffec001 #3:-320
106253 LRCLK edge 164: 00000000 00000000 00100000 00000001 Bits:32 Hex: 00002001 #4:32
106904 LRCLK edge 165: 00000000 00000000 01010000 00000001 Bits:32 Hex: 00005001 #5:80
107555 LRCLK edge 166: 00000000 00000000 01010000 00000001 Bits:32 Hex: 00005001 #6:80
108206 LRCLK edge 167: 00000000 00000000 00010000 00000001 Bits:32 Hex: 00001001 #7:16
108857 LRCLK edge 168: 11111111 11111111 11100000 00000001 Bits:32 Hex: ffffe001 #0:-32
109508 LRCLK edge 169: 00000000 00000000 01010000 00000001 Bits:32 Hex: 00005001 #1:80
110159 LRCLK edge 170: 11111111 11111111 01100000 00000001 Bits:32 Hex: ffff6001 #2:-160
110810 LRCLK edge 171: 11111111 11111111 11100000 00000001 Bits:32 Hex: ffffe001 #3:-32
111461 LRCLK edge 172: 11111111 11111111 11010000 00000001 Bits:32 Hex: ffffd001 #4:-48
112112 LRCLK edge 173: 00000000 00000000 00110000 00000001 Bits:32 Hex: 00003001 #5:48
112764 LRCLK edge 174: 00000000 00000000 10110000 00000001 Bits:32 Hex: 0000b001 #6:176
113414 LRCLK edge 175: 00000000 00000000 10100000 00000001 Bits:32 Hex: 0000a001 #7:160
114065 LRCLK edge 176: 11111111 11111111 10100000 00000001 Bits:32 Hex: ffffa001 #0:-96
114717 LRCLK edge 177: 11111111 11111111 10000000 00000001 Bits:32 Hex: ffff8001 #1:-128
115368 LRCLK edge 178: 11111111 11111111 11100000 00000001 Bits:32 Hex: ffffe001 #2:-32
116019 LRCLK edge 179: 00000000 00000000 01110000 00000001 Bits:32 Hex: 00007001 #3:112
116670 LRCLK edge 180: 00000000 00000000 01010000 00000001 Bits:32 Hex: 00005001 #4:80
117321 LRCLK edge 181: 11111111 11111111 10110000 00000001 Bits:32 Hex: ffffb001 #5:-80
117972 LRCLK edge 182: 11111111 11111111 01100000 00000001 Bits:32 Hex: ffff6001 #6:-160
118623 LRCLK edge 183: 11111111 11111111 10110000 00000001 Bits:32 Hex: ffffb001 #7:-80
119274 LRCLK edge 184: 00000000 00000000 01100000 00000001 Bits:32 Hex: 00006001 #0:96
119925 LRCLK edge 185: 11111111 11111111 11110000 00000001 Bits:32 Hex: fffff001 #1:-16
120576 LRCLK edge 186: 00000000 00000000 10010000 00000001 Bits:32 Hex: 00009001 #2:144
121227 LRCLK edge 187: 11111111 11111111 11110000 00000001 Bits:32 Hex: fffff001 #3:-16
121878 LRCLK edge 188: 11111111 11111111 11110000 00000001 Bits:32 Hex: fffff001 #4:-16
122529 LRCLK edge 189: 11111111 11111111 10100000 00000001 Bits:32 Hex: ffffa001 #5:-96
123180 LRCLK edge 190: 00000000 00000000 00010000 00000001 Bits:32 Hex: 00001001 #6:16
123831 LRCLK edge 191: 00000000 00000000 01110000 00000001 Bits:32 Hex: 00007001 #7:112
124482 LRCLK edge 192: 11111111 11111111 01000000 00000001 Bits:32 Hex: ffff4001 #0:-192
125133 LRCLK edge 193: 11111111 11111111 11100000 00000001 Bits:32 Hex: ffffe001 #1:-32
125784 LRCLK edge 194: 11111111 11111111 01100000 00000001 Bits:32 Hex: ffff6001 #2:-160
126435 LRCLK edge 195: 00000000 00000000 11110000 00000001 Bits:32 Hex: 0000f001 #3:240
127086 LRCLK edge 196: 00000000 00000001 00010000 00000001 Bits:32 Hex: 00011001 #4:272
127737 LRCLK edge 197: 11111111 11111111 00110000 00000001 Bits:32 Hex: ffff3001 #5:-208
128389 LRCLK edge 198: 00000000 00000000 10010000 00000001 Bits:32 Hex: 00009001 #6:144
129040 LRCLK edge 199: 11111111 11111111 10100000 00000001 Bits:32 Hex: ffffa001 #7:-96
129691 LRCLK edge 200: 00000000 00000000 01000000 00000001 Bits:32 Hex: 00004001 #0:64
130342 LRCLK edge 201: 11111111 11111111 10110000 00000001 Bits:32 Hex: ffffb001 #1:-80
130993 LRCLK edge 202: 00000000 00000000 00010000 00000001 Bits:32 Hex: 00001001 #2:16
131644 LRCLK edge 203: 00000000 00000000 10010000 00000001 Bits:32 Hex: 00009001 #3:144
132295 LRCLK edge 204: 11111111 11111111 11010000 00000001 Bits:32 Hex: ffffd001 #4:-48
132946 LRCLK edge 205: 00000000 00000000 00010000 00000001 Bits:32 Hex: 00001001 #5:16
133597 LRCLK edge 206: 11111111 11111111 01000000 00000001 Bits:32 Hex: ffff4001 #6:-192
134248 LRCLK edge 207: 00000000 00000000 11100000 00000001 Bits:32 Hex: 0000e001 #7:224
134899 LRCLK edge 208: 00000000 00000000 11110000 00000001 Bits:32 Hex: 0000f001 #0:240
135550 LRCLK edge 209: 00000000 00000000 00010000 00000001 Bits:32 Hex: 00001001 #1:16
136201 LRCLK edge 210: 00000000 00000000 01100000 00000001 Bits:32 Hex: 00006001 #2:96
136852 LRCLK edge 211: 11111111 11111111 10010000 00000001 Bits:32 Hex: ffff9001 #3:-112
137503 LRCLK edge 212: 11111111 11111111 01100000 00000001 Bits:32 Hex: ffff6001 #4:-160
138154 LRCLK edge 213: 00000000 00000000 01100000 00000001 Bits:32 Hex: 00006001 #5:96
138805 LRCLK edge 214: 11111111 11111111 00000000 00000001 Bits:32 Hex: ffff0001 #6:-256
139456 LRCLK edge 215: 11111111 11111111 10000000 00000001 Bits:32 Hex: ffff8001 #7:-128
140107 LRCLK edge 216: 11111111 11111111 11000000 00000001 Bits:32 Hex: ffffc001 #0:-64
140758 LRCLK edge 217: 11111111 11111111 10010000 00000001 Bits:32 Hex: ffff9001 #1:-112
141409 LRCLK edge 218: 11111111 11111111 11000000 00000001 Bits:32 Hex: ffffc001 #2:-64
142061 LRCLK edge 219: 00000000 00000000 01110000 00000001 Bits:32 Hex: 00007001 #3:112
142712 LRCLK edge 220: 00000000 00000000 01110000 00000001 Bits:32 Hex: 00007001 #4:112
143363 LRCLK edge 221: 00000000 00000000 10010000 00000001 Bits:32 Hex: 00009001 #5:144
144014 LRCLK edge 222: 11111111 11111111 11010000 00000001 Bits:32 Hex: ffffd001 #6:-48
144665 LRCLK edge 223: 00000000 00000000 01100000 00000001 Bits:32 Hex: 00006001 #7:96
145316 LRCLK edge 224: 11111111 11111111 11000000 00000001 Bits:32 Hex: ffffc001 #0:-64
145967 LRCLK edge 225: 00000000 00000000 11110000 00000001 Bits:32 Hex: 0000f001 #1:240
146618 LRCLK edge 226: 11111111 11111111 11110000 00000001 Bits:32 Hex: fffff001 #2:-16
147269 LRCLK edge 227: 11111111 11111111 11000000 00000001 Bits:32 Hex: ffffc001 #3:-64
147920 LRCLK edge 228: 11111111 11111111 10010000 00000001 Bits:32 Hex: ffff9001 #4:-112
148571 LRCLK edge 229: 11111111 11111111 11110000 00000001 Bits:32 Hex: fffff001 #5:-16
149222 LRCLK edge 230: 00000000 00000000 01100000 00000001 Bits:32 Hex: 00006001 #6:96
149873 LRCLK edge 231: 000000

Every N samples (actually every 384 samples), there are two sample with LSB set to 0x09 rather than 0x01. Counting the channels as seen on the front-panel from 1 to 16, these are marking channels 1 and 2 in the first data stream. Channels 8 & 9 are I expect marked in the same way, although I don’t have a second WM8804 running on that channel yet.

Low-noise +/-12v linear power supply for Phono Preamp

Ages ago, I built a John Linsley-Hood design of phono preamp, first published in ETI magazine in 1992. This was considerably better than the phono stage in the integrated amp I was using at the time (a Creek CAS4040).

For a couple of decades I ran this from my bench power supply, so it was definitely time for its own PSU.  Rather than etching my own circuit board, nowadays kits are available via eBay that save a lot of that messy work.  I wanted something based on the LM317 / LM337 regulators, as they are known to have superior noise performance and regulation compared to the standard 7812 / 7912 family.

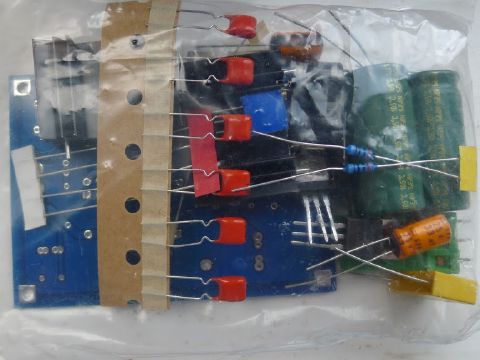

I started with this kit.  Unpacking, you have a bag of bits and a very nice looking double-sided, through-hole-plated, silk-screen-printed PCB – way better than you can make yourself.  And the total price of the kit is less than you’d pay from a regular supplier for the parts.  The large electrolytic caps are Sanyo branded, and look genuine to me.

Here’s a view of the PCB sides:

The negative regulator is branded “On” which is On Semiconductor, formerly Motorola.

I filed down the burrs on the heatsink holes, removed the anodization/paint with a small file, and applied some PC heatsink paste.  Probably overkill, considering that the preamp will draw less than 100mA, but better than overheating.

here’s the regulators mounted on the heatsinks, ready to insert in the board.

The circuit diagram supplied with the kit didn’t quite match the PCB & kit of parts.  Here’s a marked-up version of the diagram:
The bypass capacitors around the full-wave rectifier diodes were interesting – I hadn’t seen those before.  I found this site and this article which explains what they’re for.
Even with the caps in place, some ringing is evident when looking at the transformer secondary taps. While I’m somewhat skeptical that this would ever be audible, let’s see if we can do better, based on that second article.
Firstly, let’s add 330R dummy load resistors, so we can test the circuit behaviour without endangering the regulators.

The ringing is definitely there on the transformer secondary output:
Here’s a closeup of the rising and falling edge ringing:

Now let’s add 180R in series with each of the 100n snubber caps.  It’s a little bit awkward to fit this into the existing PCB, but it’s possible.
Here’s the improved damping result.

Here’s the improved R-C snubbers in place.

Looking at the 12v outputs, they’re pretty clean, with noise below 1mV on each rail.

Ready to connect to the preamp.  I used a trailing 7-pin DIN socket for the power (using pins 6 & 7 for -/+12v so they can’t be mistakenly connected to audio inputs).

12v-12v secondary transformer and surge-protected IEC input.

The finished power supply, mounted inside an ABS box from CPC.

I found that, when the preamp is connected to other devices such as USB sound-cards, hum levels were reduced when the power supply 0v output was not connected to mains earth. Perhaps the PC was already earthing via the sound-card and it was just introducing a ground loop.

Simple electronic water leak detector

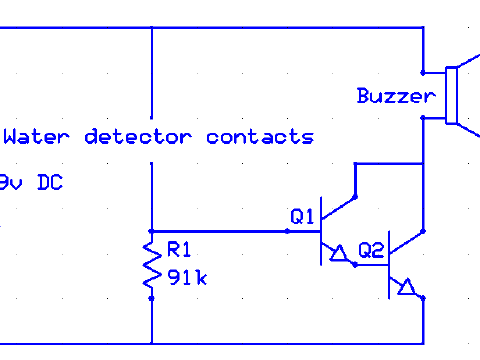

The following circuit is a very simple water leak detector, which I made 25+ years ago (!!) following my fiancée having a washing machine go wrong and leak all over her apartment.

The circuit is not ideal – there are better designs out there. It was built with ‘what I had in my scrapbox at the time’.  It’s purely analog, relying on the gain of the Darlington pair to provide reasonable on/off behaviour. This can actually be an advantage, as the sound will get louder as the leak becomes more serious and conducts more water.

The transistors used are not critical. I used BC108Cs.

Battery current drain is essentially zero (too low to measure on my meter) when there’s no conduction.
The physical construction had a few hacks which surprised me when I took it apart again.
– The self-tapping screws are used both to hold in the buzzer, and act as the electrodes.  Kind-of-neat, but soldering on to them was a nasty little shortcut I’m not proud of!
– The battery is just held in with double-sided tape.  Good enough for something that’s rarely changed.
– The circuit board is just loose in the box. Actually I had held it in place with blu-tak before, which was horrible. But the blu-tak seems to absorb moisture and prevents the circuit working properly.
– The plastic box would cut down the sound level too much. So it has holes cut in the box lid to let the sound out.  These holes are then “sealed” using a blu-tak ‘grommet’ and thin plastic.  Reasonable compromise between letting the sound out and not letting water in!
Here’s a pic of the insides.
Nowadays, cheap commercial solutions are easily available such as this.

Simple Optical Compressor for bass guitar – construction

An extremely simple yet capable compressor circuit is published by Elliott Sound Products, here:  http://sound.westhost.com/project45.htm

Compressor Mk I

I built the circuit exactly as-is (in an Altoids tin).

Care was taken to optically couple the bulb to the photocell (LDR), using a perspex rod, wrapped in smooth tin-foil.  The perspex came from eBay:
http://stores.ebay.co.uk/thewholesaleposco2009

as did the miniature “Grain of Wheat” bulbs:  http://stores.ebay.co.uk/GnA-MODELPARTS?_trksid=p2047675.l2563

This was put together, and sealed in heatshrink tubing, to make it fairly lightproof from external light sources.  The rest of the components came from http://cpc.farnell.com (free postage) or from my junk box.

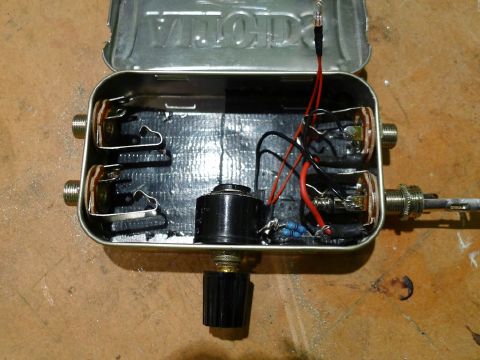

Here’s the final assembly.  The green wire provides grounding (shielding) for the tin-foil, as per the original article description.

Here’s the finished article.  The Altoids tin was really too small, so I had to cut notches in the lid, which rather spoiled the look.

The duck tape on the bottom of the box provides insulation.  The whole tin is effectively coupled to the amp “earth” via the jack socket outer rings.

I soon discovered the following:

  • Using jack-sockets to carry high-current, low-impedance amp output signals is a very dumb idea.  I knew this before, I just kind-of forgot it in the urge to get everything to fit in an Altoids tin.  Even with the amp output muted (but powered), I got a fat blue spark when unplugging the box.
  • The “grain of wheat” bulbs don’t really get into their proper operating range of brightness when you have an efficient speaker cabinet (like a www.barefacedbass.com one) – even when the variable resistor is turned right up.
My amp has an FX send / return loop, so I was using that for the input side (on the left).  The two speaker sockets (on the right) were there in case a “pass thru” was needed, although again my amp has two speaker-outs, so no need to use that in practice.
I was a bit concerned about the way the tin was earthing together the FX send/return loop with the “-” side of the amp output.  It worked fine for the two amps I tried, but what would happen if it was connected to an amp in bridge-mode where the “+” and “-” sides were both driven?  Clearly not ideal.

Compressor Mk II

 Mk II was going to be built in a proper case, with a Speakon plug on a trailing lead (so it simply cannot be plugged in wrongly), and would use a high-efficiency LED with suitable dropper resistors instead of the bulb (so as to be more effective at low amp output levels).

It would also have electrical isolation between the amp out / speaker side, and the delicate FX send/return loop (which will be used for a shielding / ground connection for the case).

Here it is:

The Speakon cable enters through a grommet, is double tie-wrapped to the floor of the case, so even your clumsy drummer friend shouldn’t damage it.

The variable resistor is a 5 watt, 500 ohm type which I found on eBay:
http://stores.ebay.co.uk/Interesting-Electronics?_trksid=p2047675.l2563

You’ll notice a pair of 47 ohm fixed resistors, in parallel, on the green input wire next to the variable resistor.  In parallel that makes around 24 ohms.  The purpose of that, is to prevent the last little bit of the variable resistor’s track dissipating a lot of power.  In fact it’s hardly necessary as the LEDs use less power than the bulbs.  I used two small resistors in parallel because they have a low power rating (I think 1/4 watt) and didn’t want them to get too hot.

Because LEDs can “flash” much faster than a bulb can, and only respond to current in one direction, we need a “rectifier and smoother” circuit.  This is what the small diode and big  capacitor does.

The capacitor is 470uF, 25v (from the junk box).  Voltage rating is important, as your amp can produce quite high peak voltages.  Make sure you use at least a 25v rated one, higher if you can – preferably 63v.

The output of the capacitor feeds two separate LED circuits.  The first one has 2x 220 ohm in parallel (effectively 110 ohm) feeding the high-efficiency LED that is inside the shrink wrap.  Because the LED light output is very directional, I did not use the perspex rod – I just put the LED right up against the front face of the LDR.

The second circuit goes through 470 ohms to a small front-panel LED.  The idea being that you can see what the compressor is doing from the outside.

The final part of the circuit is the same as the Elliott original.  A 33k resistor couples the input side (amp:  FX SEND) to the output side (amp:  FX RETURN), forming a potential divider with the LDR.

With the lid off in the dark, you can see both LEDs are working together.

The case was sprayed a non-Ashdown blue, and a nice quality collet knob from CPC/Farnell added.

The final circuit seems to work well – the component values will need some tweaking to suit your amp / cabinet combination.  If you want a circuit that is less sensitive to amp/cab variations then you might want to look at the other Elliott pages.

Circuit diagram:

Free download in PDF
and ExpressPCB .sch format (R-click / Save As) .. software available here
